Timken HM911243 - HM911210 bearing

Series HM911200
Cone Part Number HM911243
Cup Part Number HM911210
Design Units Imperial
Bearing Weight 4.7000 lb
2.1000 Kg
Cage Type Stamped Steel

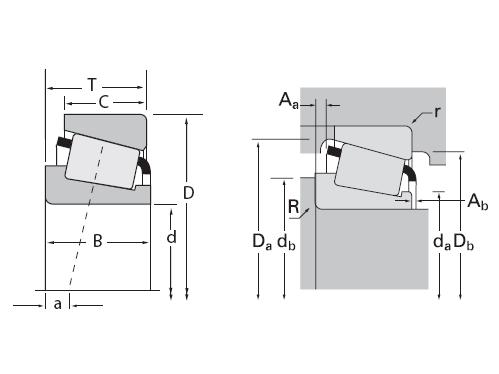

D - Cup Outer Diameter 5.1250 in
130.175 mm
d - Cone Bore 2.1250 in
53.975 mm
B - Cone Width 1.2175 in
30.925 mm
C - Cup Width 0.9375 in
23.813 mm
T - Bearing Width 1.3425 in
34.100 mm
Z - Number of Rollers Per Row 15
R - Cone Backface "To Clear" Radius1 0.140 in
3.560 mm
r - Cup Backface "To Clear" Radius2 0.130 in
3.30 mm
da - Cone Frontface Backing Diameter 2.91 in
73.91 mm
db - Cone Backface Backing Diameter 3.11 in
78.99 mm
Da - Cup Frontface Backing Diameter 4.88 in
123.95 mm
Db - Cup Backface Backing Diameter 4.29 in
108.97 mm
Ab - Cage-Cone Frontface Clearance 0.17 in
4.32 mm
Aa - Cage-Cone Backface Clearance 0.20 in
5.08 mm
a - Effective Center Location3 0.31 in
7.90 mm
C90 - Dynamic Radial Rating (90 million revolutions)1 9720 lbf
43200 N
C1 - Dynamic Radial Rating (1 million revolutions)2 37500 lbf
167000 N
C0 - Static Radial Rating 41100 lbf
183000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)3 13600 lbf
60700 N
K - Factor1 0.71
e - ISO Factor2 0.82
Y - ISO Factor3 0.73
G1 - Heat Generation Factor (Roller-Raceway) 56.4
G2 - Heat Generation Factor (Rib-Roller End) 16.5
Cg - Geometry Factor 0.0842
