Timken HM256849D - HM256810 bearing

Series HM256800
Cone Part Number HM256849D
Cup Part Number HM256810
Design Units Imperial
Bearing Weight 146.6000 lb
66.5000 Kg
Cage Type Pin-Type

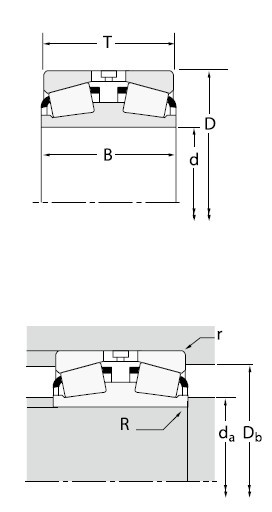

D - Cup Outer Diameter 16.6250 in
422.275 mm
d - Cone Bore 11.8125 in
300.038 mm
B - Double Cone Width 5.9375 in
150.813 mm
C - Cup Width 2.5000 in
63.500 mm
T - Bearing Width across Cups 5.9375 in
150.813 mm
Z - Number of Rollers Per Row 36
R - Cone Frontface "To Clear" Radius1 0.130 in
3.30 mm
r - Cup Backface "To Clear" Radius2 0.130 in
3.30 mm
da - Cone Frontface Backing Diameter 12.68 in
322.10 mm
Db - Cup Backface Backing Diameter 15.51 in
394.00 mm
Ab - Cage-Cone Frontface Clearance 0.14 in
3.60 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 75600 lbf
336000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 508000 lbf
2260000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 132000 lbf
586000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)4 43600 lbf
194000 N
K - Factor1 1.73
e - ISO Factor2 0.71
Y1 - ISO Factor3 0.95
Y2 - ISO Factor4 1.42
G1 - Heat Generation Factor (Roller-Raceway)5 2550
G2 - Heat Generation Factor (Rib-Roller End) 282
Cg - Geometry Factor6 0.178



LUOYANG VICTOR PACIFIC BEARING CO.,LTD. Professional Timken HM256849D - HM256810, we provide high quality Timken HM256849D - HM256810 bearings, Timken HM256849D - HM256810 bearings to ensure they achieve excellent performance and achieve the most favorable price and long life, giving reduce distress, which is dated Timken HM256849D - HM256810 bearings price and availability of stock, or if you want to know more technical information leading Timken HM256849D - HM256810 bearings and related models, please contact us, and we supply FAG, Timken bearings, NSK bearings, INA bearings and other brands, which are equivalent to Timken HM256849D - HM256810 bearing contact us for details: admin@tradebearings.com
