Timken HM252348 - HM252310CD bearing

Series HM252300
Cone Part Number HM252348
Cup Part Number HM252310CD
Design Units Imperial
Bearing Weight 177.9948 lb
80.7370 Kg
Cage Type Stamped Steel

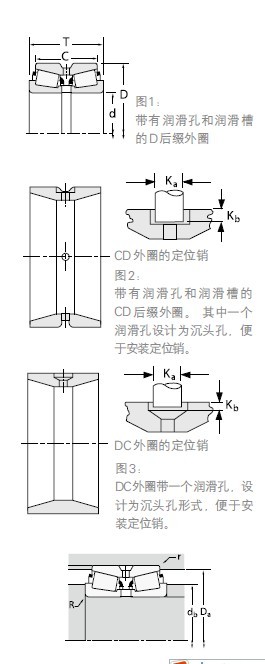

D - Cup Outer Diameter 16.6250 in
422.275 mm
d - Cone Bore 10.2500 in
260.350 mm
B - Cone Width 3.1406 in
79.771 mm
C - Double Cup Width 5.5000 in
139.700 mm
T - Bearing Width across Cones 7.0311 in
178.590 mm
Z - Number of Rollers Per Row 22
Ka - Locking Pin Diameter 1.5 in
38.1 mm
Kb - Locking Pin Depth 0.5 in
12.7 mm
R - Cone Backface "To Clear" Radius1 0.270 in
6.900 mm
r - Cup Frontface "To Clear" Radius2 0.06 in
1.5 mm
db - Cone Backface Backing Diameter 11.50 in
292.10 mm
Da - Cup Frontface Backing Diameter 15.79 in
399.54 mm
Aa - Cage-Cone Backface Clearance 0.51 in
13.00 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 87400 lbf
389000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 587000 lbf
2610000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 152000 lbf
677000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)4 49700 lbf
221000 N
K - Factor1 1.76
e - ISO Factor2 0.7
Y1 - ISO Factor3 0.97
1.44
Y2 - ISO Factor4 1.44
G1 - Heat Generation Factor (Roller-Raceway)5 1500
G2 - Heat Generation Factor (Rib-Roller End) 148
Cg - Geometry Factor6 0.148



LUOYANG VICTOR PACIFIC BEARING CO.,LTD. Professional Timken HM252348 - HM252310CD, we provide high quality Timken HM252348 - HM252310CD bearings, Timken HM252348 - HM252310CD bearings to ensure they achieve excellent performance and achieve the most favorable price and long life, giving reduce distress, which is dated Timken HM252348 - HM252310CD bearings price and availability of stock, or if you want to know more technical information leading Timken HM252348 - HM252310CD bearings and related models, please contact us, and we supply FAG, Timken bearings, NSK bearings, INA bearings and other brands, which are equivalent to Timken HM252348 - HM252310CD bearing contact us for details: admin@tradebearings.com
